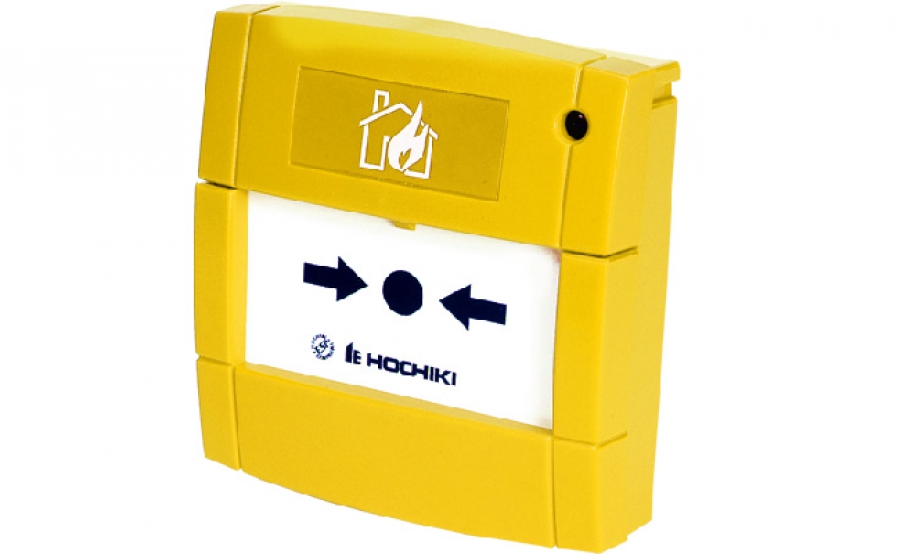

Addressable Call Point Yellow
Model HCP-E/Y is a Manual Call Point, which is fully compatible with Hochiki’s ESP analogue addressable protocol.
The HCP-E/Y incorporates a red LED mounted on the front cover, which can be selected as pulsing/non-pulsing* for communications polling and is continuously lit when the HCP-E/Y is operated. The unit is operated by pressing the EN54 compliant non-frangible (plastic) element and, once operated, produces a high level ESP interrupt, allowing the control panel to respond very quickly. A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring.
The unit is addressed using the TCH-B100 Hand Held Programmer for quick and reliable addressing. The unit can be flush mounted as supplied. For surface fixing a suitable back box such as the SR MOUNTING BOX is required (sold separately). An optional glass element is also available.
*Fire alarm control panel compatibility is required for this feature.
- Fast response
- Status LED
- Non-frangible element fitted as standard (conforms to EN54)
- Addressed with TCH-B100 Hand Held Programmer
- Surface or flush mounting (if surface mounting, requires SR MOUNTING BOX, sold separately)
- LPCB Approved to EN54
