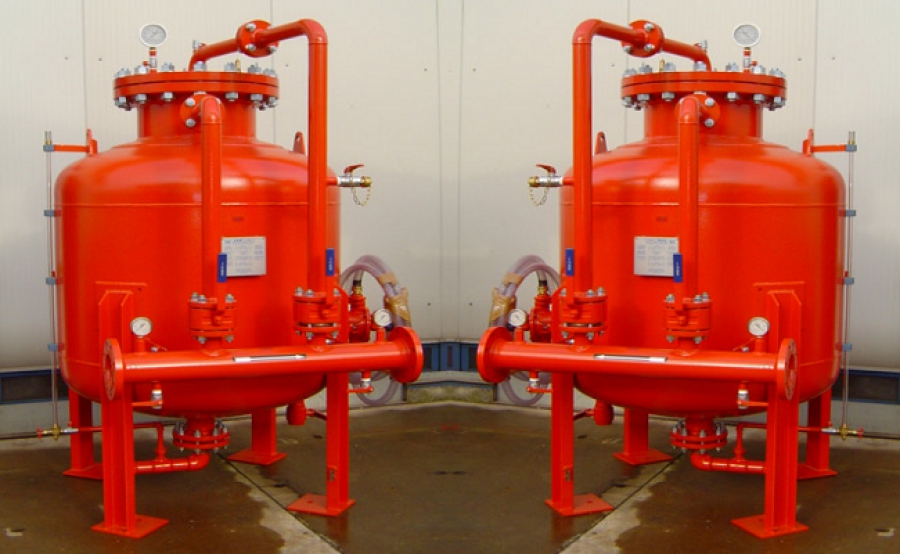

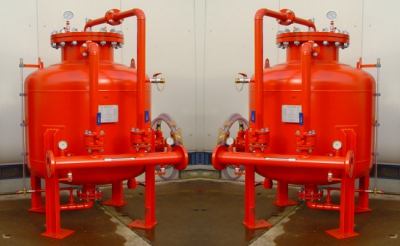

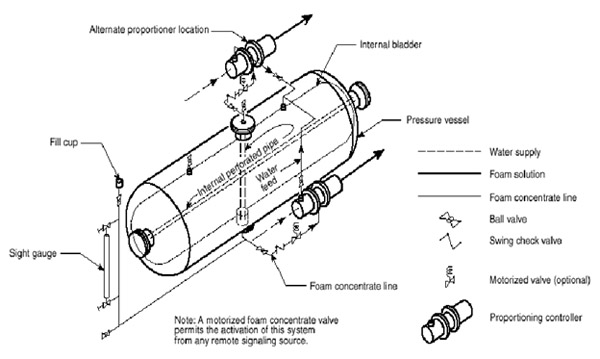

One of the most common devices for foam generation is foam bladder tank. This device comprises a pressure vessel which is equipped by an internal Diaphragm (Bladder).

Foam concentrate store inside Bladder. When water flow to pressure vessel, pressurizing bladder then force stored foam concentrate through related piping and inject the foam through calibrated orifice and Mixer (Proportioner) to water line with predetermined mixing ratio (1%, 3%, 6%).

Advantages of Bladder Tank:
- No need to External power supply, foam solution generate while water flow exist.
- Very Low maintenance, there is no moving mechanical part.
- Independent from piping length after Mixer (Proportioner).
- No adjustment required.

Available Options for Supply:
- Horizontal & Vertical Type
- Capacity from 200 to 20,000 Liters
- Mixer (Proportioner) pre-piped onto tank assembly
- Internal coating for sea water Application
- Stainless Steel Pipe for Foam Line
- Automatic On/Off valve on Foam Line

Ordering Information:
Please specify the following:
- Type of tank required (Horizontal or Vertical)
- Capacity of tank
- Design & Working Pressure
- Whether required for seawater Service
- flow rate of Mixer (Proportioner)
- Type of foam and Foam mixing ratio (1% or 3% or 6%)
- Whether required Automatic On/Off valve on Foam Line
