40/40L-LB UV/IR

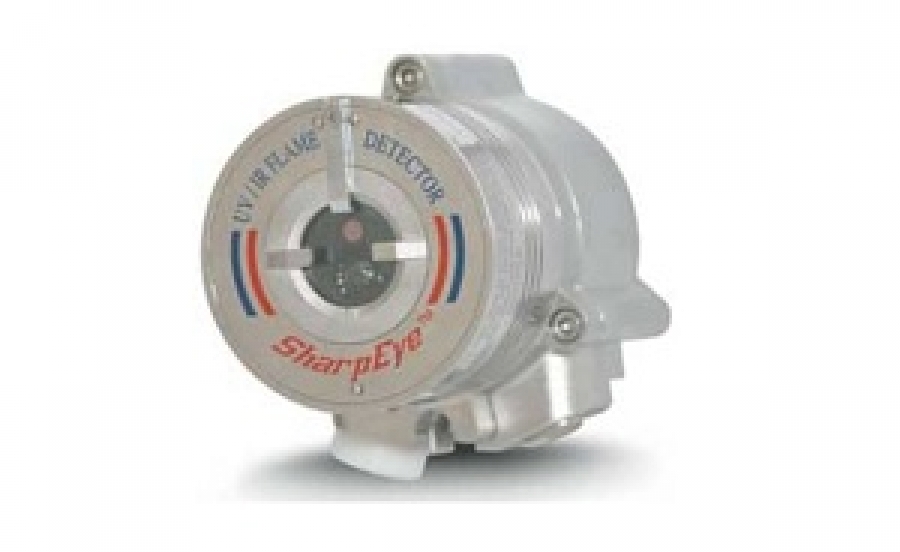

40/40L-LB UV/IR Flame Detector Series

Model 40/40L (or LB, with Built-in-test option) provides a combination of UV and IR sensors, where the IR sensor operates at a wavelength of 2.5-3.0 µm, and can detect hydrocarbon-based fuel and gas fires, hydroxyl and hydrogen fires, as well as metal and inorganic fires.

The UV/IR flame detector senses radiant energy in the short wave section of both the ultraviolet and infrared portions of the electromagnetic spectrum. The signals from both sensors are analyzed for frequency, intensity and duration. Simultaneous detection of radiant energy in both the UV and IR sensors triggers an alarm signal.

The UV sensor incorporates a special logic circuit that helps prevent false alarms caused by solar radiation.

Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is SIL2 (TUV) approved to IEC 61508.

Features

UV/IR Dual-Sensor
Fast Response - 200 msc to flash fire
Solar Blind
Automatic Built-In-Test (BIT) and Manual- to assure continued reliable operation
Heated window - for operation in harsh weather conditions (snow, ice, condensation)
Multiple output options for maximum flexibility and compatibility
