40/40UFL

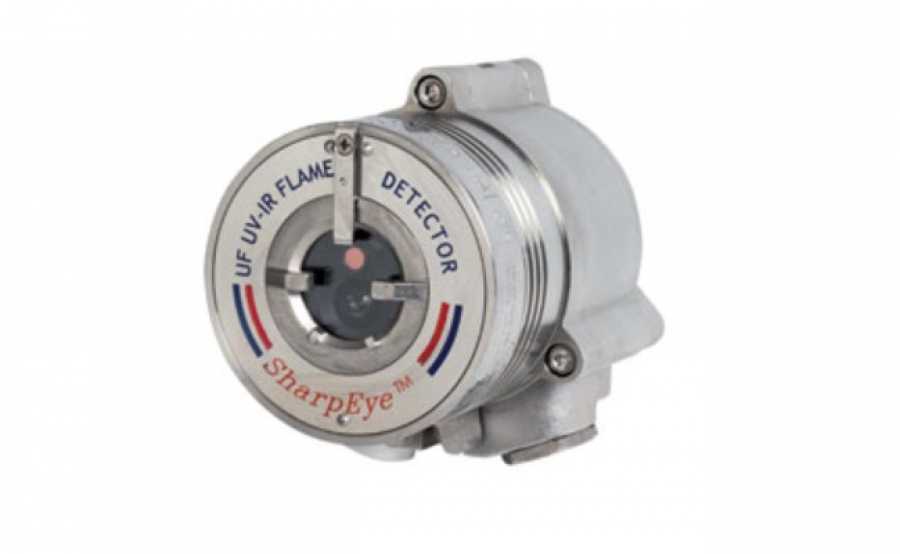

40/40UFL Ultra Fast UV/IR

The new SharpEye UV-IR High-Speed Optical Flame detector 40/40UFL is designed to meet two major requirements:
- High-Speed Response (20 msec)
- High Reliability (immunity to False Alarm)

This detector is based on our well known military detector used in Armored Vehicle Explosion Suppression System combined with the industrial UV-IR detectors 20/20LB and 40/40LB.

The UV/IR flame detector senses radiant energy in the short wave section of both the ultraviolet and infrared portions of the electromagnetic spectrum. The signals from both sensors are analyzed for frequency, intensity and duration. Simultaneous detection of radiant energy in both the UV and IR sensors triggers an alarm signal.

The UV sensor incorporates a special logic circuit that helps prevent false alarms caused by solar radiation.

Features

UV/IR Dual-Sensor
High-Speed Response - 20 msec response to flash fire
Solar blind
Automatic Built-In-Test (BIT) and manual - to assure continued reliable operation
Heated window - for operation in harsh weather conditions (snow, ice, condensation)
Multiple output options for maximum flexibility and compatibility
