Fire Alarm System

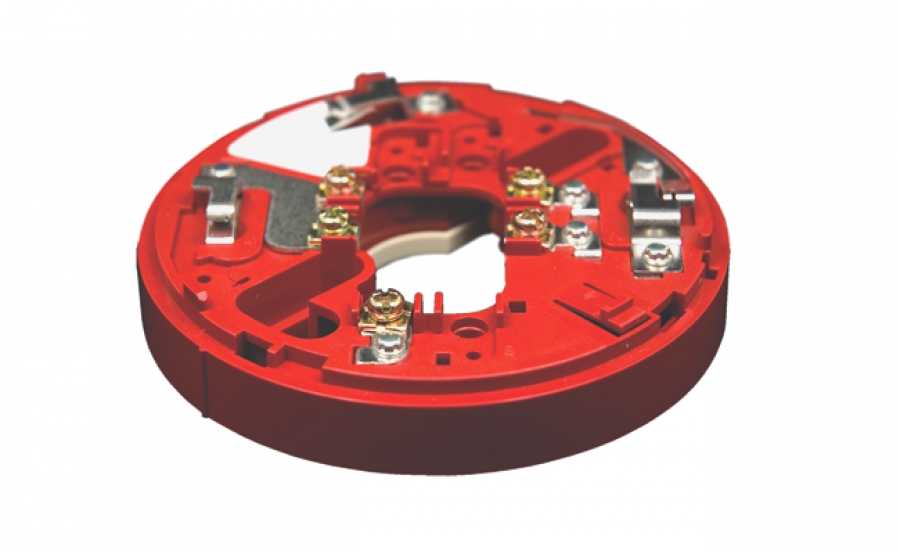

YBO-R/SCI(RED)

Model YBO-R/SCI(RED) is a Loop Isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol.

The YBO-R/SCI(RED) Base has been designed to be used with the red CHQ-WS2 Wall Sounder or CHQ-WSB Wall Sounder Beacon.

The YBO-R/SCI(RED) does not use an address, and has the same wiring configuration as the standard YBN-R/3 Sensor Base making it very simple to install.

  • Colour matches with CHQ-WS2 Wall Sounder and CHQ-WSB Wall Sounder Beacon
  • Detects short circuits on loop
  • Status LED
  • Connection of up to 127 per loop
  • Bayonet slot, low insertion force for detectors
  • Quick connection via square cable clamps
