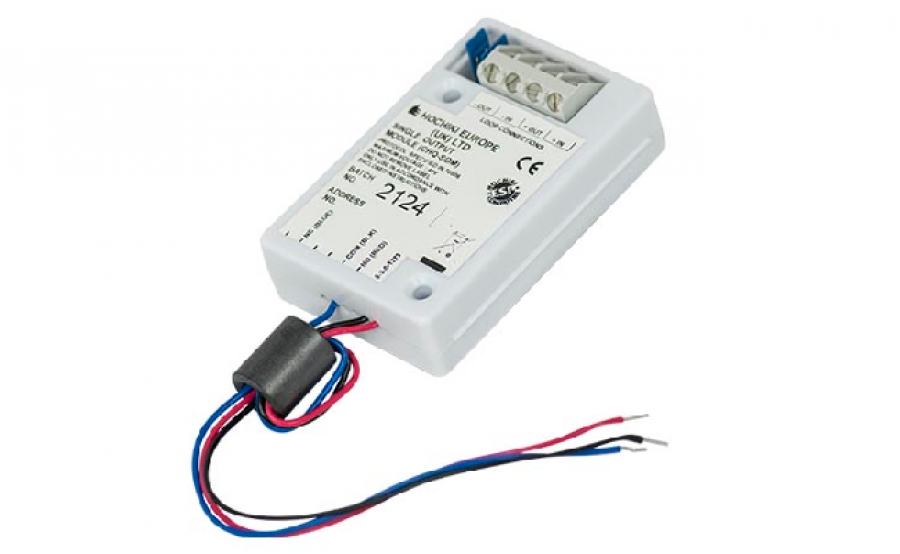

The CHQ-SOM has been designed to allow a single relay output to be connected to the ESP loop.  The unit incorporates a volt-free relay contact that can be configured as either N/O or N/C, the relay contact is rated to 30 V dc (max), 1 A (resistive load).  The CHQ-SOM features three colour-coded flying leads, the unit also features a wiring terminal block for loop connection.

NOTE: To maintain LPCB approval the device must be mounted in an SMB-1 enclosure (or an equivalent enclosure made from polycarbonate or a similar material which is impact resistant as per EN54-18:2005 Clause 5.9) in conjunction with the SMB-ADAPTOR plate, using two M3 screws or two M3 nuts and bolts.

• Includes a single monitored output
• Small design for simple provision of a monitored output onto an ESP loop
• Flying leads for easy installation
• Addressed with TCH-B100 Hand Held Programmer
• Approved by LPCB
