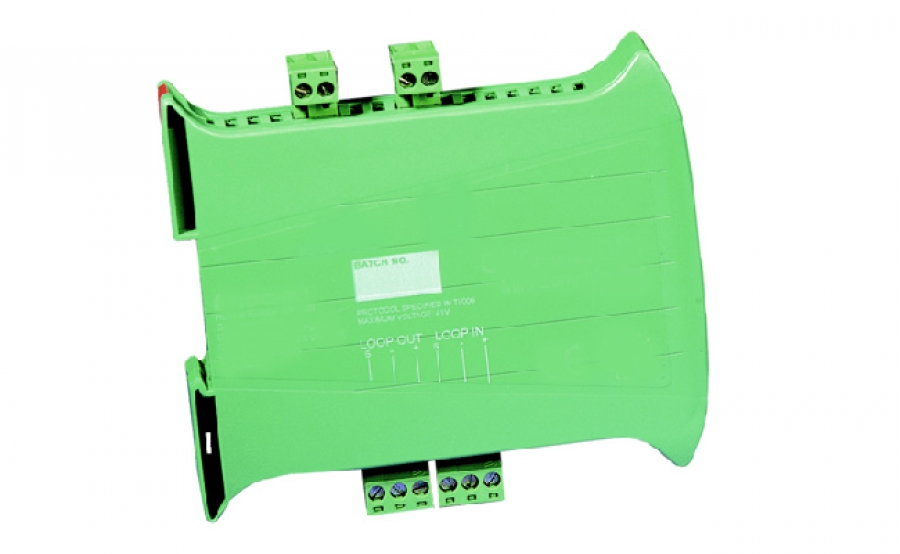

Model CHQ-SZM/DIN(SCI) is a Single Zone Monitor designed to allow up to 6 conventional detectors to be interfaced to Hochiki’s ESP analogue addressable system. The unit is supplied as a DIN Rail mountable version but a boxed module version is also abvailable. Both models feature an integral short-circuit isolator. The CHQ-SZM/DIN(SCI) utilises simple DIL switches for reliable addressing.
NOTE: The conventional zone on the CHQ-SZM/DIN(SCI) does not support any line continuity options; if Call Points are being interfaced they should be wired at the beginning of the zone.
- Loop powered
- Up to 6 Conventional Detectors
- Single loop address
- Remote LED output
- Fully monitored for short and open circuit faults
- Boxed module version available
- Both models feature an integral short-circuit isolator
- Both models approved by LPCB & VdS
