Fire Alarm System

SMB-2

DIN Mounting Box - Large (up to 6 DIN rail modules)

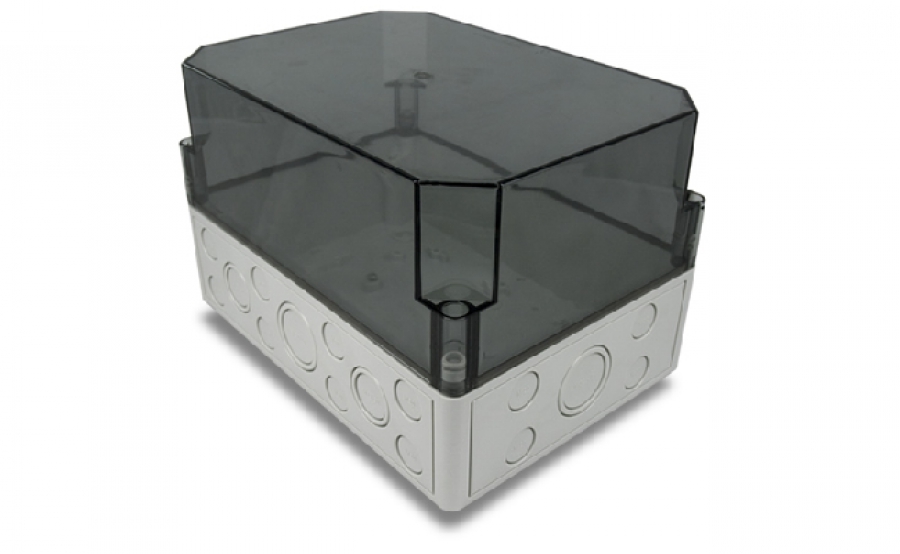

Model SMB-2 is an IP66 rated, grey (RAL7035) enclosure designed for use with the Hochiki range of DIN Modules.  The SMB-2 features a selection of metric knock-outs and is supplied with a transparent black lid as standard.  A grey opaque lid, SMB-2(LID), is also available (sold separately).  The unit is supplied with a DIN Rail section (plus fixings) and will accept up to six Hochiki DIN Rail Modules, side-by-side.

Used in conjunction with the SMB-ADAPTOR, an adaptor plate (sold separately), this enclosure can also house any of the PCB assemblies from the Hochiki CHQ Module range or the CHQ-SIM, CHQ-POM or CHQ-SOM “mini” modules.

  • Designed to house up to 6 Hochiki DIN Modules
  • Quick-release screws
  • Polyurethane gasket provides IP66 protection
  • Corrosion free, resistant to most alkaline and acid
  • Temperature resistance to +70 deg C, Impact resistant, and Non-flammable
  • 32 knock-outs
  • Supplied with DIN Rail and fixings

Certificates
