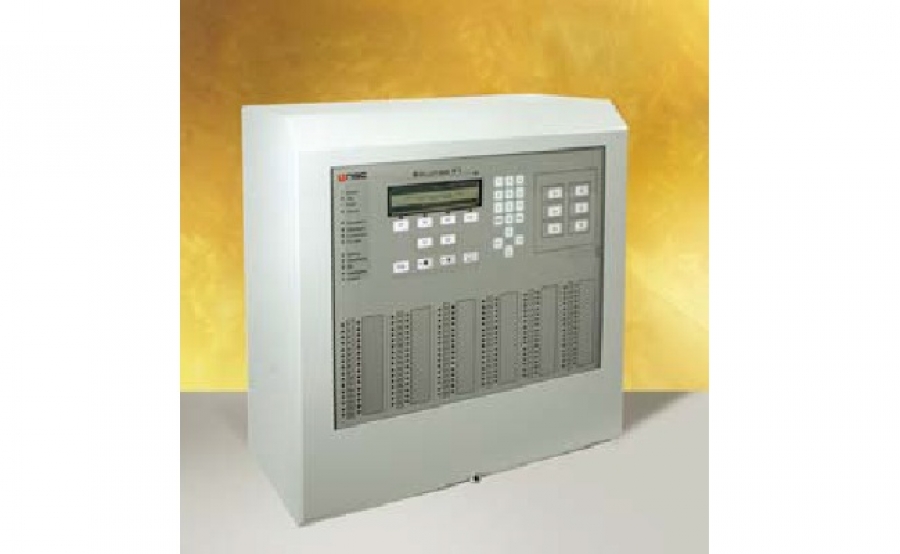

Fire Control Panel "Solution F1-6" Standard configuration for 2-6 loops and max. 762 detectors / modules with power supply 4 A / 24 V included
Modular, intelligent and ultra modern Fire Control Panel for analogue addressable detectors and conventional detectors. Prepared for 2 to 6 loops and / or 8 to 24 conventional zones. Supports Hochiki ESP and CDX detectors.

The standard configuration includes :
− Power supply 24V / 4,0A, main board with 32 bit CPU and Touch Control Panel with graphics LCD module 240 x 64 pixel
− Slots for a maximum of 3 loop cards and / or conventional detector cards
− Interface for German Fire Brigade Control Panel
− Interface for Fire Brigade Key Deposit Box
− 3 separate power outputs for alarm transmission device / sounders / strobes, each 24V / 500 mA
− Up to 8 programmable push buttons (e.g. for macros)
− A max. of 512 zones can be organized
− USB interface for PC configuration
− Up- and Download of operating software
− 100 % redundant RS-485 interface
− 3 separate RS-232 interfaces
− Interface for transmission modem “I-Module” (option). Transmission can be by analogue modem, ISDN or Ethernet
− 4 programmable relays
− 2 conventional zones for special applications like monitoring of extinguishing systems
− 16 programmable digital O/C outputs
− 8 programmable monitored inputs
− 3 opto coupled outputs
− Earth fault detection
− Slot for network card
− 3 fused power supply outputs
Please select housing separately.
Technical specifications :
Mains AC : 230 V AC, 50/60 Hz
Operating voltage : 24 V DC
Quiescent current : 90 mA
Loops / Spurs : 2 – 6 / 8 - 24
Power supply : 4,0 A / 24 V
Batteries : max. 40 Ah / 24 V
Weight : ca. 14,9 kg with
housing A1
Dimensions : see housings
VdS approval : G 205 024
VdS System approval : S 205 024
