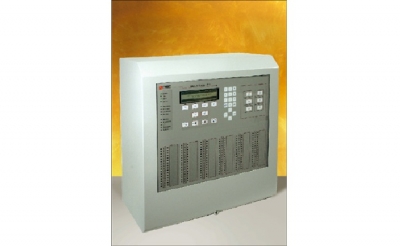

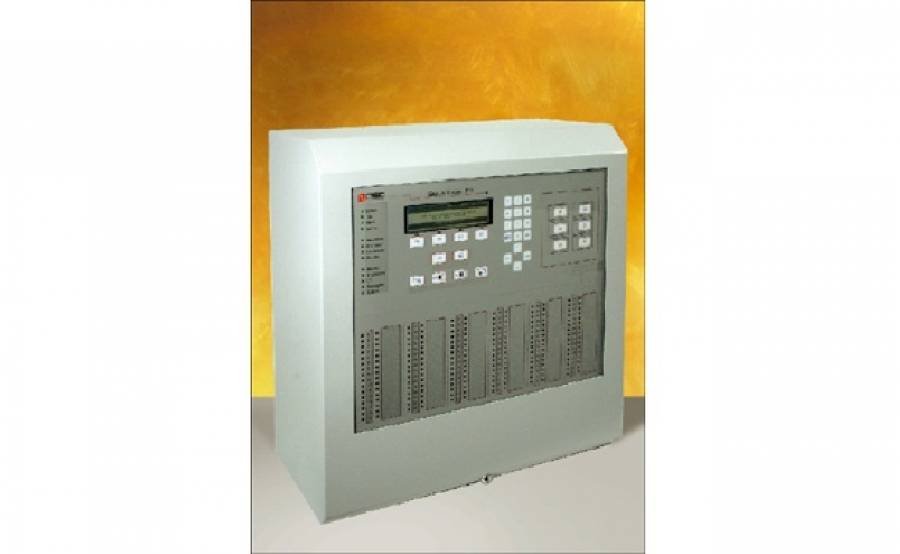

Fire Control Panel "Solution F1-18" Standard configuration for 2-18 loops and max. 2.286 detectors / modules with power supply 7,0 A / 24 V included
Modular, intelligent and ultra modern Fire Control Panel for analogue addressable detectors and conventional detectors. Prepared for 2 to 18 loops and / or 8 to 72 conventional zones. Supports Hochiki ESP and CDX detectors.

Additional features compared to Solution F1-6“ :
− Panel can control up to 2.286 detectors /modules
− Power supply 24 V / 7,0 A included
− Slots for max. 9 loop cards and / or conventional detector cards
− A max. of 1.024 zones can be organized
− USB host interface e.g. for USB stick for export of panel data
− Metal rack for additional mounting area inside the panel (for system components)
− Interface for TFT display
− Interface for Touch Screen LCD module
− Slot for SD card to extend data memory
− Interface for audio codec module Please select housing separately.
Technical specifications :
Mains AC : 230 V AC, 50/60 Hz
Operating voltage : 24 V DC
Quiescent current : 100 mA
Loops / Spurs : 2 – 18 / 8 - 72
Power supply : 7,0 A / 24 V
Batteries : max. 70 Ah / 24 V
Weight : ca. 17,5 kg with
housing A1
Dimensions : see housings
VdS approval : G 205 024
VdS System approval : S 205 024
