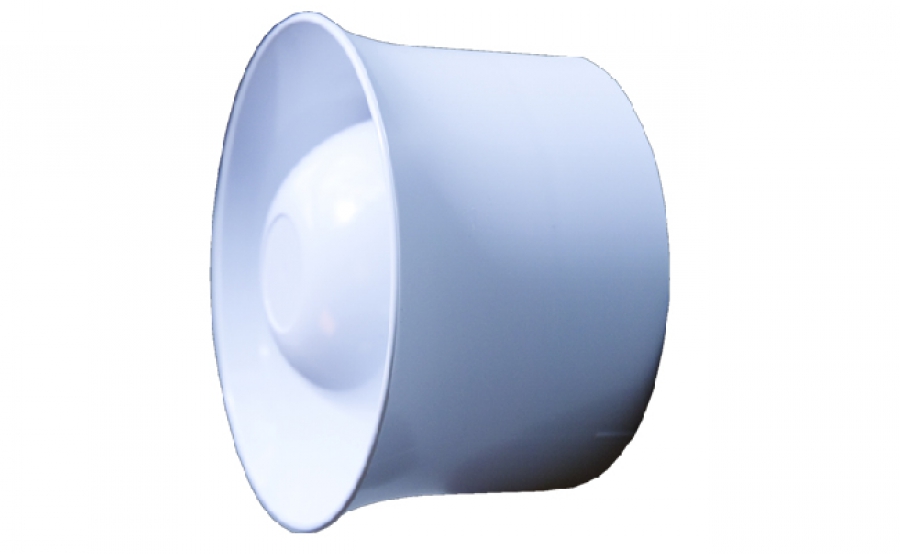

Model CHQ-WS2(WHT) is an addressable loop powered Wall Sounder innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBO-R/3(WHT)) or the Isolator Base (YBO-R/SCI(WHT/SNDR)). The sounder is IP rated to IP21 for internal use but it can be made weatherproof by utilising the WS2-WPK(WHT) Weatherproof Kit, which consists of a specialised back box and gasket set.
Also incorporates an auto shutdown mode* which allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, ideal for minimising noise pollution.
*Dependent on control panel compatibility.
- Loop Powered
- Single Loop Address - addressed via the TCH-B100 Hand Held Programmer
- Variable Sound Output 90 ~ 102 dB(A) (+/-2 dB(A)) output at 1 metre
- Fits Hochiki Standard or Isolator Base
- Weatherproof Kit available
- 51 User-Selectable Tones (all tones EN54-3 compatible)
- Also available in red
- Approved by LPCB & VdS
