Sub-frame:
Steel sub-frame built according to chassis manufacturer’s standards which reduce the level of stresses introduced by the chassis such as traveling, vibration and deformation.
Pump:
- Single stage centrifugal pump with automatic self priming unit with 7 m suction head.
- Two stage (high and low pressure) centrifugal pump with automatic self priming unit with 7 m suction head.
Power Transmission:
- Standard split shaft unit providing power to the pump set.
- Standard PTO (power take-off) unit for gearbox providing power to the pump set.
Super Structure:
Light weight aluminum (or anti-corrosion coated steel) structure in combination with aluminum plate outer panels for excellent anti-corrosion characteristics and aluminum roller shutters.
Tank:
Stainless steel rectangular section tank (According TO NFPA-1901) installed longitudinally to better balance the vehicle and also create bigger side storage areas.
Other Equipments:
- Standard lighting & Warning system
- Foldable aluminum roof access ladder and portable ladder
- Pump and PTO control panel
- Around the pump foam proportioning system
- High pressure hose reel
- Fire Hose & Nozzles
- Fire Extinguishers
- Foam Barrels
- Portable Light Mast
Note: Special equipment or configuration could be supplied according to customers need.

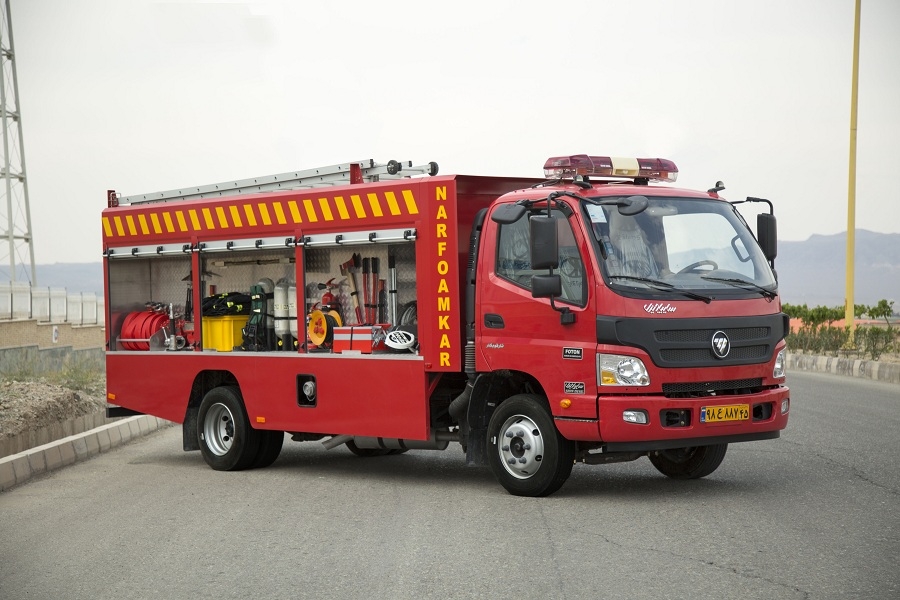

NK-FT-612
|
Model/ |
NK-FT-612 |
|
Chassis |
FOTON |
|
G.V.W. |
6.5 Ton |
|
Engine |
145/2600 (HP/RPM) |
|
Crew |
1+2 |
|
Wheelbase |
3800 mm |
|
Pump |
1200 LPM @ 8 bar |
|
Water Tank |
1200 lit |
NK-FT-824
|
Model/ |
NK-FT-824 |
|
Chassis |
FOTON |
|
G.V.W. |
8.5 Ton |
|
Engine |
150/2600 (HP/RPM) |
|
Crew |
1+2 |
|
Wheelbase |
3800 mm |
|
Pump |
1200 LPM @ 8 bar |
|
Water Tank |
2400 lit |
NK-IS-612
|
Model/ |
NK-IS-612 |
|
Chassis |
ISUZU |
|
G.V.W. |
6 Ton |
|
Engine |
133/2800 (HP/RPM) |
|
Crew |
1+2 |
|
Wheelbase |
3816 mm |
|
Pump |
1000 LPM @ 19 bar & 250 LPM @ 40 bar |
|
Water Tank |
1200 lit |
