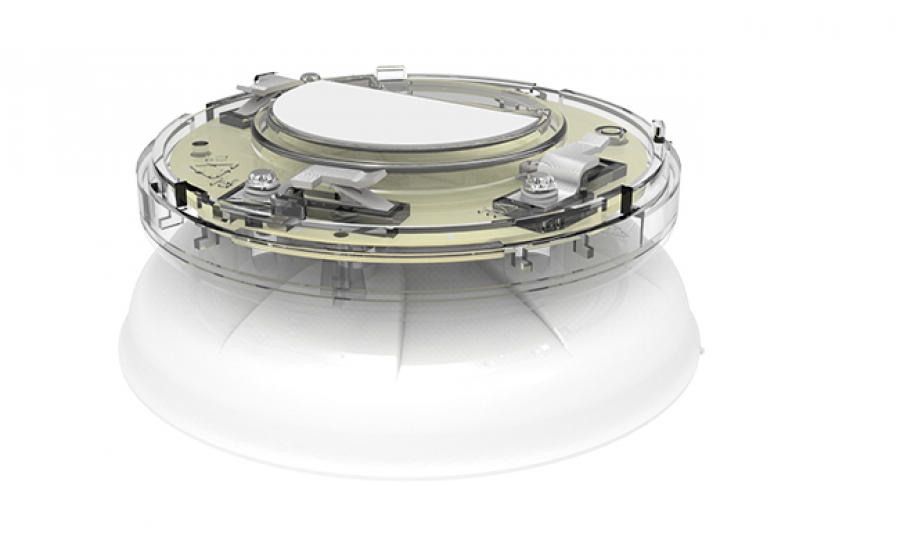

Model YBO-BSB2 is an addressable loop powered Base Sounder with integral Beacon, innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBN-R/3) or the Isolator Base (YBO-R/SCI) and can be fitted with any of the ESP Range of Sensors, Beacons or Remote Indicators.
The unit can also be converted into a wall sounder beacon with the simple addition of a Cap (SI/CAP). The sounder is Ingress Protection rated to IP21 and for internal use only. An Auto-Shutdown feature allows the user to set a fixed time within which the sounder or beacon will operate, before automatically shutting down, cutting noise pollution in the case of the sounder element*. Sounder and Beacon elements can be operated independently from each other*.
*Dependent on control panel compatibility.
- Single Loop Address - addressed via the TCH-B100 Hand Held Programmer
- Variable Sound Output 50 ~ 98 dB(A) (�2 dB(A)) output at 1 metre
- Sounder and Beacon can operate independently
- Variable flash frequency
- Fits Hochiki Standard or Isolator Base and supports ESP Sensors, Addressable Beacons and Addressable Remote Indicator
- 51 User-Selectable Tones (all tones EN54-3 compatible)
- Auto-Shutdown feature prevents noise-pollution
- �O� Rated Beacon to EN54-23
- Available with Red or White LED�s
- Available in White
