UV Flame Detector 20/20U-20/20UB

Description

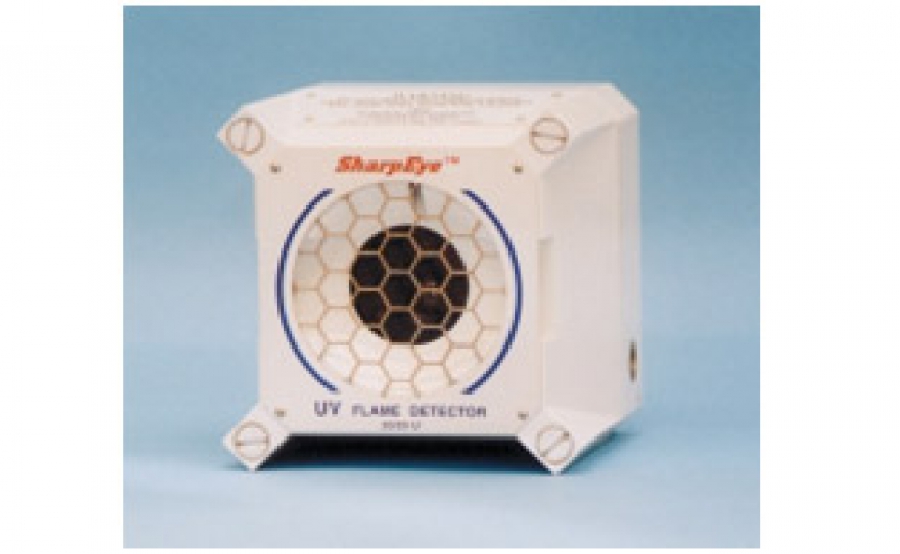

The Sharp-Eye UV Optical Flame Detectors 20/20U and 20/20UB (which includes a BIT function) are designed to meet the strict industry performance requirements. The UV sensor has been carefully selected to ensure the greatest degree of spectral matching to the radiant energy emissions of fire.

Features
- UV Spectrum Design: 0.185 - 0.260 microns
- Temperature Range: -40°C ~ +70°C
- Operating Voltage: 18-32 VDC
- Cone Vision: 90° Horizontal / 90° Vertical
- Typical 3 second Response
- User Programmable Configuration
- Automatic and Manual Built-In Test (BIT) – UB
- Output: Relay & 4-20mA
- Ingress Protection: IP 66/67
- Hazardous Area Classification: EX II 2G, EExd IIB + H2 T5 (70°C) ,T4 (85°C)
- MTBF Minimum 100,000 Hours
- FM, CSA and ATEX
