Fire & Gas Detection System

40/40I Triple IR

40/40I Triple IR

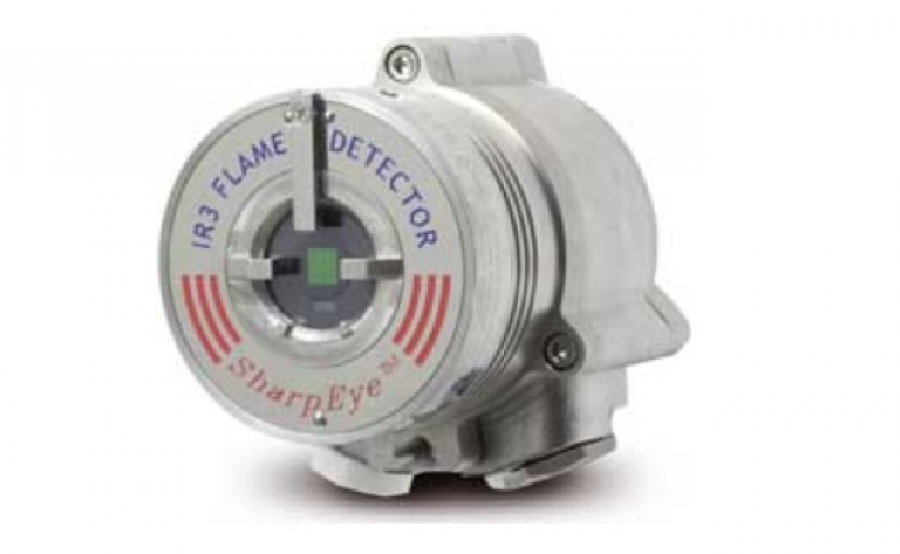

40/40I Triple IR (IR3) Flame Detector

The new 40/40I, a multi spectrum based on three IR bands (IR3), detects fuel and gas fires at long distances with the highest immunity to false alarms. The 40/40I IR3 can detect a 1ft2 (0.1 m2) gasoline pan fire at 215 ft (65m) in less than 5 seconds.

The 40/40I is the most durable and weather resistant flame detector currently on the market. Its new features include a heated window, to eliminate condensation and icing; HART capabilities for digital communications; lower power requirements; and a compact, lighter design.

Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is SIL2 (TUV) approved to IEC 61508.

Features
  • Multi Spectrum Design - for long distance detection and high false alarm immunity
  • Sensitivity Selection - to ensure no zone crossover detection
  • Automatic and Manual Built-In-Test (BIT) - to assure continued reliable operation
  • Heated Window - for operation in harsh weather conditions (snow, ice, condensation)
  • Multiple Output Options for maximum flexibility and compatibility
    • Relays (3) for Alarm, Fault and Auxiliary
    • 0-20mA (stepped)
    • HART Protocol for maintenance and asset management
    • RS-485, Modbus Compatible
  • High Reliability - MTBF - minimum 150,000 hours
  • 5-Year Warranty

  • User Programmable via HART or RS-485
  • Ex approved for Zone 1 hazardous area location
    • ATEX
    • IECEx
    • FM/FMC-CSA
  • 3rd party Performance Tested
    • EN54-10 (VdS)
    • FM3260 (FM)
    • DNV Marine Approval
