40/40M Multi IR

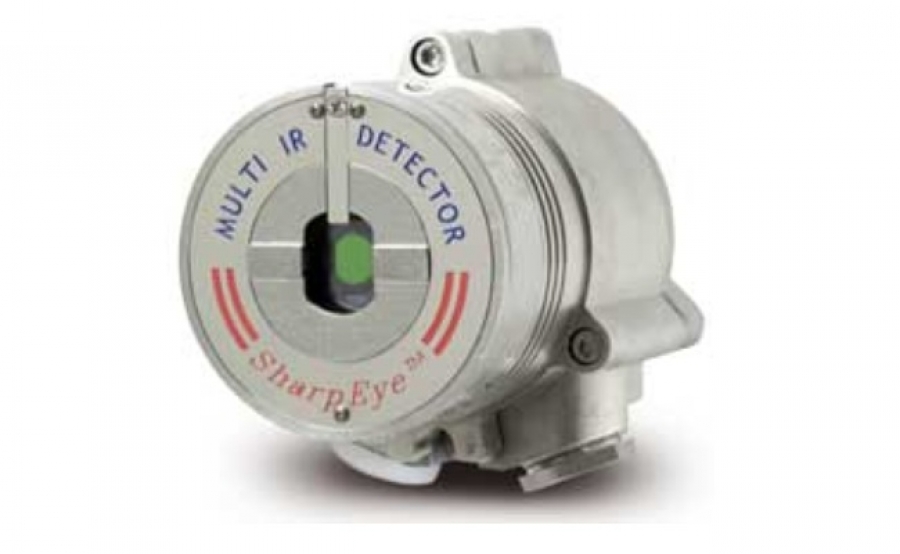

40/40M Multi IR Flame Detector

The new 40/40M Multi IR Flame Detector is specifically designed for detection of hydrocarbon and hydrogen flames. It detects hydrocarbon-based fuel and gas fires at long distances with the highest immunity to false alarms. The 40/40M can detect a gasoline pan fire at 215 ft (65m) or a hydrogen flame at 100 ft (30m) in less than 5 seconds.

The 40/40M is the most durable and weather resistant range of flame detectors currently on the market. Its new features include a heated window, to eliminate condensation and icing; HART capabilities, for digital communications; lower power requirements, and a compact, lighter design.

Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is SIL2 (TUV) approved to IEC 61508.

Features

Multi Spectrum Design - for long distance detection of hydrocarbons and hydrogen
High False Alarm Immunity
Sensitivity Selection - to ensure no zone crossover detection
Automatic and Manual Built-In-Test (BIT) - to assure continued reliable operation
Heated Window - for operation in harsh weather conditions (snow, ice, condensation)
Multiple Output Options for maximum flexibility and compatibility

Relays (3) for Alarm, Fault and Auxiliary

0-20mA (stepped)

HART Protocol for maintenance and asset management

RS-485, Modbus Compatible

High Reliability - MTBF - minimum 150,000 hours
Approved to Safety Integrity Level 2 (SIL2 - TUV)

5-Year Warranty
User Programmable via HART or RS-485
Ex approved for Zone 1 hazardous area location

ATEX

IECEx

FM/FMC

3rd party Performance Tested

EN54-10 (VdS)

FM3260 (FM)
