Standalone controller for MANX88 :

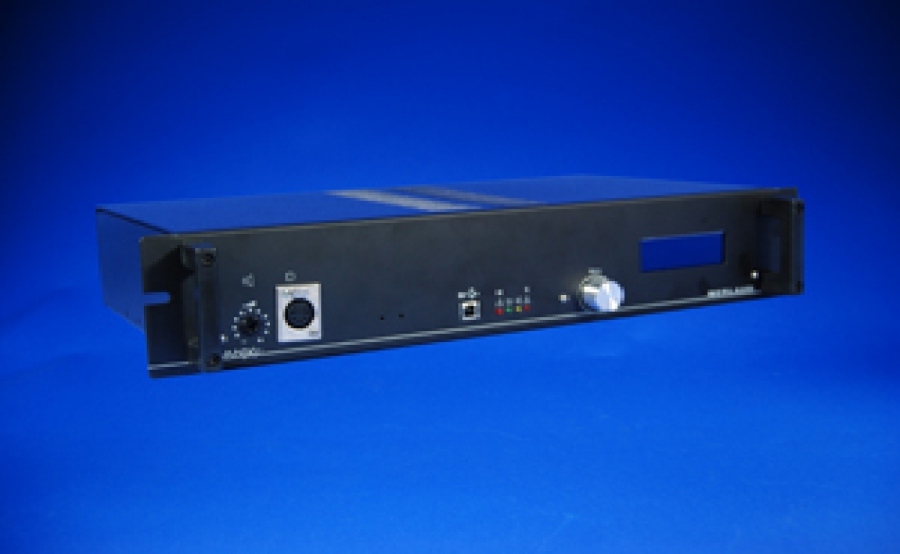

The MAN Xc is a 'processor' for controlling PA systems. LCD Display and a navigation dial on the front allow you to configure some functions and display the different status. With the internal clock Sequences of digital messages can be managed, it also alllows to make a timestamp of events in the log of defects or trigger functions (Day / Night) at specific times. A USB jack on the front allows easy access, from a PC, to all functions of setup, configuration, monitoring and simulation. A set of 4 front panel LEDs provide signalling to major functioning of the device. It is capable of controlling audio switching matrices MANX88 type and process DTMF commands sent by these matrices. It manages paging desks by a serial link to allow zone selection and signaling the status of switchings. It allows to centralize defects of amplifiers and speakers lines, connected to these amplifiers, in accordance with the requirements of the standards . It is cappable to handle four Digitl Messages players for the simultaneous broadcasting of different messages on 4 different areas. It includes a set of configurable input contacts and triggered by different voltages. It is capable of providing configurable output contacts for the signaling of various states: Switchings, defects, ... It is compatible with different protocols: MODAN (SNCF) MODBUS GTC (RATP), external clock synchronization. An Optional interface with fire alarm panels (UGA) provides automatic evacuation message broadcast and the transmission of the general state of the PA system. The 'IP' option includes an interface that allows you to assign an IP address to access and remotely control the system. The option I / O allows the extension of the number of contact inputs / outputs and a more flexible switching voltages. The outputs are equipped with a relay. The MANXc is expecting for operation 24V DC. 19"-2U rackmount unit. Compatible with existing standards
