UV/IR Flame Detectors

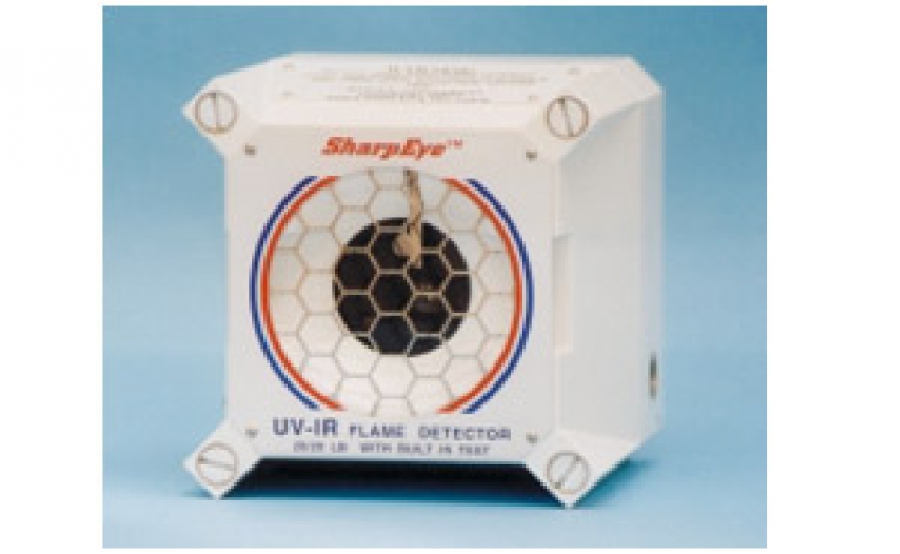

Spectrex UV/IR Flame Detector 20/20L and 20/20LB

Description

The SharpEye UV/IR Optical Flame Detectors 20/20L and 20/20LB (which includes a BIT function) are an improved version of the well-proven Spectrex Ultra Violet/Infra Red (UV/IR) optical flame detectors featuring modern microprocessors and detection algorithms that provide excellent detection sensitivity combined with enhanced immunity to false alarms.



Features


- UV Spectrum Design: 0.185 - 0.260 microns
- IR Spectrum Design: 2.5 - 3 microns
- Temperature Range: -40°C ~ +70°C
- Operating Voltage: 18-32 VDC
- Cone Vision: 90° Horizontal / 90° Vertical
- Typical 5 second Response
- User Programmable Configuration
- Automatic and Manual Built-In Test (BIT) – UB
- Output: Relay & 4-20mA
- Ingress Protection: IP 66/67
- Hazardous Area Classification: EX II 2G, EExd IIB + H2 T5 (70°C) ,T4 (85°C)
- MTBF Minimum 100,000 Hours
- FM, CSA and ATE

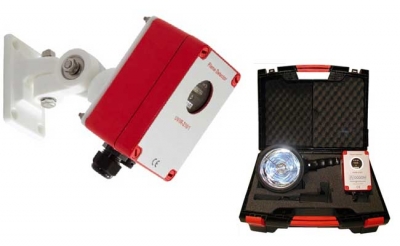

Oggioni UV/IR Flame Detector



The OGGIONI UV/IR-210/1 UV/IR flame detector is a combination of a UV- and IR- flame detector which utilizes a microprocessor for sophisticated electronic signal analysis. The IR part of the flame detector has an additional alarm criterion: the analysis of the flame flicker-frequency. The UV and the IR sensor must both exceed their alarm threshold to initiate a fire alarm. The UV/IR flame detector has a good false alarms rejection since the UV and the IR sensor do not share false alarm sources. The UV/IR-210/1 flame detector can thus be applied in areas where single UV or IR flame detectors could potentially cause false and/or unwanted alarms.

The applications in which the UV/IR-210/1 flame detector can be used are:

  • Hydrocarbons storage and processing including tank farms
  • Hydrogen storage and processing
  • Chemical storages, fuels, paint and solvent storage
  • Oil and Gas pipe line and pumping stations
  • Fuel service stations
  • Engine rooms
  • Monitoring of machinery
  • Aircraft hangars
  • Car, bus, tram and train parking’s
  • Paint spray booth’s
  • Recycling and waste processing plants
  • Electric power transformers
  • Atriums
  • Bio gas setups and  stables

Features

Monitors higher hydrocarbons flames (wood, paper, petrol) but also hydrogen and lower hydrocarbons such as methanol and methane.

  • Good resistance against the influences of:
  • direct and reflected sun light.
  • artificial light, such as fluorescent tubes and glass covered halogen lamps.
  • arcs and electric discharges (static or from e.g. electric motors).
  • the radiation from electric welding provided that the electric welding takes place at a distance more than 3 meters from the flame detector (a welding rod contains organic compounds which show flame phenomena).
  • Less suitable for very smoky fires. This inhibitor of both the UV-sensor and the IR-sensor affects the flame detector performance.
  • Automatic Sensor Test (Built-in Self-Test) which monitors the sensors and the electronics of the flame detector for its proper operation.
  • DIP-switches to set the sensitivity and latching/non-latching alarm relay outputs to adjust the flame detector to the application (not active in EN54-10 models).

Benefits

  •  Rugged UV sensor and IR sensor make the detector suitable for virtually all fire types.
  • Sophisticated software enhances the reliability and availability of the detector.
  • Design of the housing and the swivel mount avoid mounting errors with regards to grounding.
  • Automatic Sensor Test (Built-in Self-Test) enhances the reliability and availability of the flame detector.
  • A Pressure Compensating Element avoids additional cost of maintenance caused by moisture build up and increases the life time.
  • Non-sparking design enhances the reliability and the availability and with a reasonable add on price for an ATEX declaration it is suitable for use in zone 2/22.
  • Warranty: whichever comes first: 36 months after installation or 42 months after supply.

Specification

Specifications

Flame Detector UV/IR-210/1



Power

12-24 Vdc (10-28 Vdc)

Current normal

25 mA at 24 Vdc

Current in alarm, at 24 Vdc

+/- 75 mA at 24 Vdc

Startup time

<10 sec

Alarm output setting

Selectable LEDs and relays latching/non latching, factory and EN54-10 setting: latching

Connectability

  • a fire control panel by means of end of line (EOL) and alarm resistor (current increase).
  • a device that can take relay outputs
  • a PLC with a 0-20 mA input

End of line and alarm resistor

To be adjusted to the fire control panel, free terminals dedicated for the resistors are available.
Remark: the value of the alarm- and EOL resistor combination must be >500 Ohm.

Relay outputs:

  • alarm relay
  • fault relay

De-energized during normal operation, no alarm, SPDT, 30 Vdc – 2 A, 60 W
Energized during normal operation, no fault, SPDT, 30 Vdc – 2 A, 60 W

Current output

Standard available 0-20 mA (stepped, sinking, non-isolated)

Alarm response time

>8 s, <30 s. See appendices

Cone of vision

900

Housing

Glass Reinforced Polyester (GRP)

Ingress protection

IP65

Temperature (operating)

-250 C tot +700 C (-130 F tot +1580 F)

Automatic and manual Self-Test

Automatic Sensor Test (Built in Self Test) and manual sensor self-test

Sensitivity settings

Selectable: very high, high, medium, low (factory setting: high, standard for EN54-10 certified models)

Dimensions

125 x 80 x 57 mm  (4.9 x 3.15 x 2.25 inch)

Weight

492 gram (1.09 lbs)

Cable gland

M20 (cable conduit diameter 5.5-13 mm in two steps 5.5-8 mm and 8-13 mm)

Pressure compensating Element

PCE (Pressure Compensating Element) avoids moisture build up in the detector housing, caused by pressures differences as a consequence of temperature fluctuations.

Terminals

Suitable for massive cores 0.6 to 1.5 mm2 (24 to 16 AWG)

CE marking

See www.oggionisas.com for Declaration(s) of Conformity

EN54-10 Certificate

Only for model UV/IR-210/1C and UV/IR-210/1CZ

ATEX Declaration of Conformity

Only for model UV/IR-210/1Z and UV/IR-210/1CZ, suitable for use in ATEX zone 2/22

FM3260 approval

Only for model UV/IR-210/1F and UV/IR-210/1FN, (pending)

FM3611 approval

Only for model UV/IR-210/1FN, suitable for use in Class I and II, Div 2. Class III, Div 1 and 2 (pending)

Optional Swivel MountSM21



Material

POM

Weight

325 gram (0.7 lbs)

Options:

Catalog Code

Part #

Description







UV/IR-210/1

SW1096

UV/IR flame detector, with variable sensitivity settings and selectable latching/unlatching alarm

UV/IR-210/1C

SW1097

UV/IR flame detector, one sensitivity and latching alarm, EN54-10 certificate

UV/IR-210/1Z

SW1105

UV/IR flame detector, with variable sensitivity settings and selectable latching/unlatching alarm, suitable for ATEX zone 2/22

UV/IR-210/1CZ

SW1106

UV/IR flame detector, one sensitivity and latching alarm, EN54-10 certificate, suitable for ATEX zone 2/22

UV/IR-210/1F

SW……

UV/IR flame detector, two sensitivity settings and selectable latching/ non latching alarm,  FM3260 approval (pending)

UV/IR-210/1FN

SW……

UV/IR flame detector, two sensitivity settings and selectable latching/ non latching alarm,  FM3260 approval (pending) and FM3611 approval (pending)

SM21

SW1098

SM21 swivel mount

T-229/4P

SW1067

T-229/4P universal UV/IR test lamp for flame detectors, incl. universal charger

TC-229/4P

SW1082

TC-229/4P universal UV/IR test lamp for flame detectors, incl. universal charger and carrying case

C-430/1

SW1069

C-430/1 carrying case for T-229/4P test lamp

UE-458/2

SW1020

UE-458/2 Mini Fire Card, with 11 pins relay base

JB1

SW1100

At request: Junction box with 2 glands, for address unit (excl. address-unit)

JB2

SW1101

At request: Junction box with 2 glands, incl. sourcing 0-20 mA output and bus-protocols

CLN

SW1102

Microfiber cleaning cloth for flame detector windows, set of 10 pieces



Certificates
